rohs compliant SlimPRO SP525F
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption


SlimPRO SP525F
SP525F Mini PC
Intel Atom 525 CPU

*Smallest Fanless PC
*Low Power Consumption

*Powerful Optional Add-On


  • Fanless Design
  • Atom Pineview D525 1.8GHZ Dual Cores Atom Processor (Embedded)
  • Intel ICH8M (Core Logic)
  • Support 2 x DDR3-800 SODIMM up to Max. 4GB
  • On-board Gigabit LAN, USB 2.0
  • Zero noise when SSD installed and low power consumption
  • Supports Standard SATA 2.5" Hard Disk and SSD

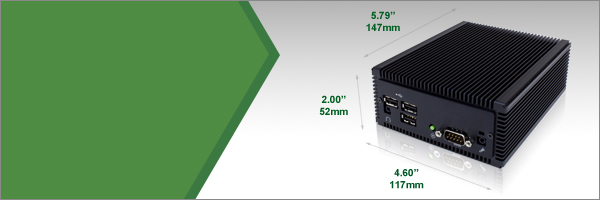

  • Compact size: 4.60"(W) x 5.79"(D) x 2.0"(H) (11.7 x 14.7 x 5.2cm)
  • Optional Card Express Slot & Mini PCI Express
  • Optional Wifi
  • Optional 2nd Gigabit LAN
  • Optional Wide DC 10~26V input version with 2 additional USB 3.0 Ports

Pictures Gallery

Processor Atom Pineview D525 1.8GHZ Dual Cores Atom Processor (Embedded)
Memory Support 2 x SODIMM DDR3 800MHz
Maximum 4GB
Core Logic Intel ICH8M (Core Logic)
Video Intel Graphics Media Accelerator 3150
Support analog display output resolution up to 2048*1536@60Hz
Audio Realtek ALC888 Software high definition audio CODEC

Built-in high speed Ethernet 10/100/1000 Mbps LAN controller
(Intel(R) PRO/1000 PL)
Support PXE Boot and WOL feature

Firewire Built-in OHCI 1394a 1.1 compliance
Support up to 400Mb transfer rate
USB 2.0 Integrated 3 independent OHCI controller supporting USB 1.1 ports
Integrated 1 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices
SATA Support 1 x 2.5" hard disk drive & optical disk drive
Support AHCI function
Support SATA SSD drive
One internal SATA connectors
Hardware Monitor

Processor temperature; Voltage; CPU fan speed

Power Management

ACPI 3.0 compliance and OS direct power management
Wake-on event: RTC/USB Keyboard / Modem / LAN / Keyboard / Mouse
Power Loss Resume feature
Watch Dog Timer not available

Switch and Jumper Front Panel: (Model SP525)
1 x RS232(COM) Port
3 x USB 2.0 / 1.1 port
1 x MIC port
1 x Ear phone output jack
1 x Power-on button
1 x Power-on and HDD LED

Rear Panel:
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x RJ45 10/100/1000Mb Fast Ethernet
1 x Line-out output jack
1 x USB 2.0 / 1.1 port
1 x 15 pin VGA
1 x 12v DC power jack input
Optional Features (Model SP525FS)
-Optional 2nd COM port
** One USB port will be remove to insert 2nd COM Port **
** Total 2 COM ports on Model SP525FS **
** Total 3 USB ports on Model SP525FS **

(Model SP525FP)
-Optional Card Express slot + Mini PCI Express Slots x 2 + extra USB
** Total 5 USB ports on Model SP525P **

(Model SP525FGW)
-Optional Extra Gigabit LAN + Mini PCI Express slot + Extra USB ports
+ Extra 1394 Firewire Port
** Total 2 Giga Lan Ports on Model SP525G **
** Total 5 USB ports on Model SP525G **

(Model SP525FC)
-2 additional USB 3.0 Ports 1 x Mini PCI Express slot
-Optional Car PC version for Wide Voltage DC 10~26V input
-Car PC version support Built-in Start up and shutdown controller by car ignition

Mounting bracket -OPtional Sliding Style Mounting Bracket

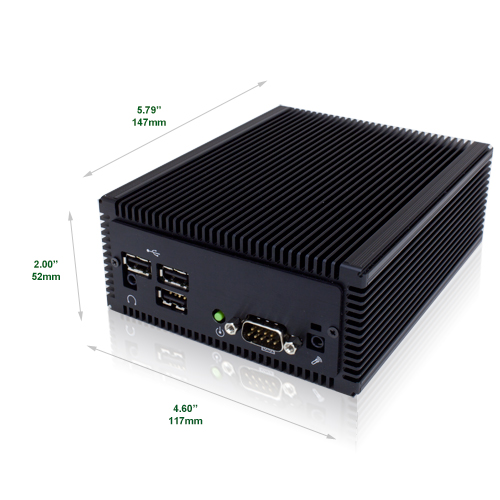

Dimension & Weight 4.60" x 5.79" x 2.0" (11.7 x 14.7 x 5.2cm)
0.85KG (fully equippped)
Operating Temperature -10 to 45°C
AC/DC Adaptor External 110~240V AC-DC adapter 2-pin 12V DC @ 5A 60W
OS Support Windows XP
Windows Vista
Windows 7 (x86, x64)
Windows 8 (x86, x64)
Resolution Support 16:9 Resolution
Support 1080p Resolution
Maximum Support Resolution:
VGA: 2048 x 1536 32-bit at 60Hz
