| Specifications |
| Processor |
Intel Core 2 Duo Processor and Celeron M Processor |
| Front Side Bus |
Front Side Bus 1066MHz
|
| Memory |
Support 2 * DDR3 1066MHz SODIMM
Maximum up to 8GB |
| Chipset |
Intel GM45 / ICH9M (North / South) |
| Video |
Intel Graphics Media Accelerator 4500MHD |
| Audio |
Software High Definition Audio CODEC ALC888 chipset |
| LAN |
Intel(R) PRO/1000 PL Ethernet 10/100/1000 Mbps LAN controller
Support WOL Function
Support PXE Boot |
| USB 2.0 |
4 External USB 2.0 ports
Integrated 6 independent UHCI controller supporting USB 1.1 ports
Integrated 2 EHCI controller supporting USB 2.0 ports
Dynamic connection support to USB 2.0 or USB 1.1 devices |
| SATA |
Support 2.5" hard disk drive or SSD
Support AHCI function |
| Hardware Monitor |
Processor temperature, Voltage, CPU fan speed |
| Power Management |
ACPI 1.0b compliance and OS direct power management
Wake-on event:
RTC/USB Keyboard / Modem / LAN / Keyboard / Mouse
Power Loss Resume Feature
|
| I / O Ports |
For Model SP345

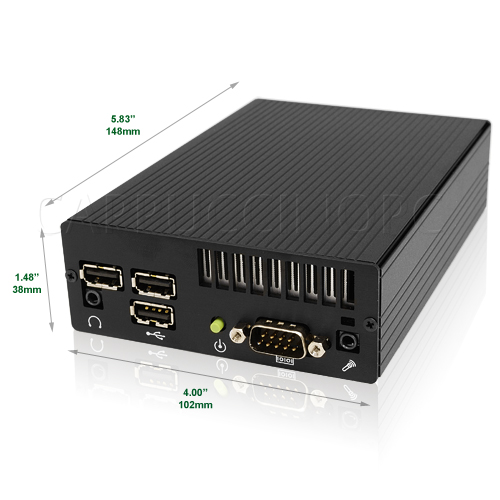

Front:
1 x RS232 (COM) Port
3x USB 2.0 / 1.1 Ports
1 x MIC port
1 x Ear Phone output Jack
Power-on Button
Power/HDD LED
Back:
1 x PS/2 Keyboard Port
1 x PS/2 Mouse Port
1 x DVI-I Port
1 x RJ45 10/100/1000Mbps Fast Ethernet
1 x USB 2.0 / 1.1 Port
1 x 12V DC Power Port |
| Optional Features |
(Model SP345S)
-Optional 2nd COM port
** One USB port will be remove to insert 2nd COM Port **
** Total 2 COM ports on Model SP345S **
** Total 3 USB ports on Model SP345S **
(Model SP345P)
-- Optional Card Express Slot + HDMI port +
2 x Mini PCI Express slots + Extra USB
** Total 5 USB ports on Model SP345P **
(Model SP345G)
-- Extra Gigabit LAN + HDMI Port +
1 x Mini PCI Express slot + Extra USB
** Total 2 Giga Lan Ports on Model SP345G **
** Total 5 USB ports on Model SP345G **
(Model SP345G3)
-Optional 3 Extra Giga Lan +
HDMI Port + extra USB
** Total 4 Giga Lan Ports on Model SP345G3 **
** Total 5 USB ports on Model SP345G3 **
(Model SP345GW)
-- Extra Gigabit LAN + HDMI Port +
1 x Mini PCI Express slot + Extra USB +
1394 Fire Port
** Total 2 Giga Lan Ports on Model SP345GW **
** Total 5 USB ports on Model SP345GW **
(Model SP345C)
-2 additional USB 3.0 Ports + 1 x Mini PCI Express slot
-Optional Car PC version for Wide Voltage DC 10~26V input
-Car PC version support Built-in Start up and shutdown controller by car ignition
wire |
| Mounting bracket |
Optional Sliding Style Mounting Bracket
|
| Dimension & Weight |

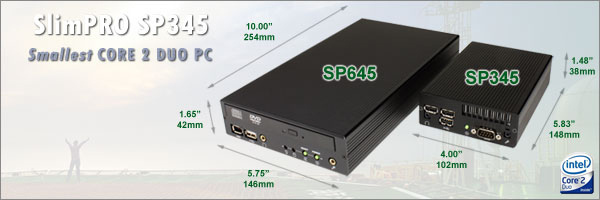

4.02" x 5.83" x 1.5" (10.2 x 14.8 x 3.8cm)
0.6KG (fully equippped) |
| Operating Temperature |
0 to 40°C |
| AC Adapter |
Input universal AC 100~240V input, DC 12V/60W output |
| OS Support |
Win XP, Vista, Win 7(32 & 64bits), Win 8.1(32 & 64bits), Win 2003 Server, Win 2008 Server,
Ubuntu 9.10, Fedora 12, Cento5, Red Hat Ent 5.4 |
| Resolution |
- Support HDTV 1080p
- Support 16:9
- Maximum Resolution
VGA: 2048 x 1536 32-bit at 60Hz
DVI: 1920 x 1080 32-bit at 60Hz
|
