UNO1900G4 Quad Core Atom Fanless Mini PC with Multi-LAN (4 x Intel Gigabit LAN)

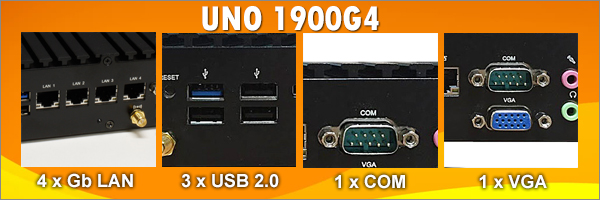

UNO1900G4 is a Mini-PC Computer features Intel Celeron Bay Trail J1900 SoC Processor to deliver low power computing ability for demanding applications. And VGA, 4 x Gigabit Ethernet Ports, 3 x UBS 2.0, 1 x USB 3.0, 1 x COM Port are perfect for Gateway, Network applications.
UNO1900G4, 4 x LAN Mini PC
J1900 Small Mini Computer
VGA
4 x Gb LAN Ports
Small Form Factor
Low Power Consumption PC
Features
Fanless Intel Celeron Bay Trail J1900 SoC Processor
Onboard 4GB DDR3L-1333 (non-expandable)
3 x USB 2.0
4 x Intel i211AT Gigabit Ethernet LAN Ports onboard
VGA
1 x COM Ports
Optional Wifi & Bluetooth
12V DC input
Low Power Consumption
Fanless Design
Small Form Factor
Related Products
Numi 210F
(Fanless Mini PC)
Built-in 4 x COM
Built-in 2 x Gb LAN
Built-in 3 x USB3.0
Built-in 1 x USB2.0 Intel Atom BayTrail I-E3845
Read More
Echo Series
(Fanless Mini PC)
Wide Temperature
Wide Voltage
Built-in 4 x COM
Built-in 2 x Gb LAN
Built-in 4 x USB3.0
Built-in 2 x USB2.0 Mobile IvyBridge (3rd Gen. i7)
Read More
SP675 Series Mini PC
Small Computer
Fanless
PCI, PCI-e x1
Add-ons 4 x Gb LAN
Add-ons 2 x Com
Add-ons 4 x USB2.0
Built-in 4 x USB 3.0 Port Mobile IvyBridge (3rd Gen. i7)
Read More
Twister 1900G4
Built-in 2 x COM
Built-in 4 x Gb LAN
Built-in 3 x USB2.0 J1900 CPU
Read More
Power Consumption in Watts
9
10
13
Idle
Normal
Peak / Full
UNO1900G19 4LAN Thin Client Gateway Small Mini PC Specifications
Processor
Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail
Graphics
Integrated Intel HD Graphics
System Memory
Onboard 4GB DDR3L-1333 (non-expandable)
Storage
Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive
1 x mSATA(Full Size)
LAN
10 x Intel i211AT Gigabit LAN onboard
Support PXE Boot
Support Wake on LAN

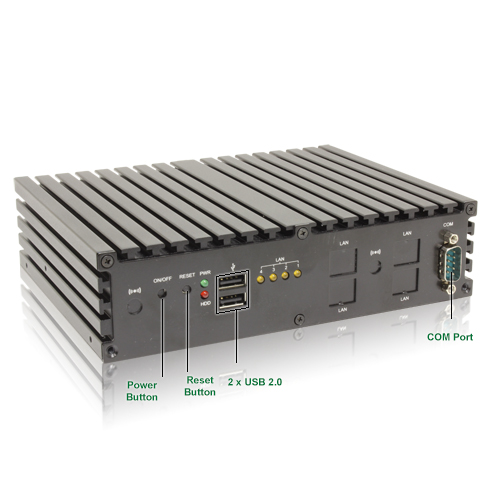

Back I/O
Front:
Power Button
1 x COM Port
Rear:
Power Input 12V
1 x USB 3.0
1 x USB 2.0 4 x Gb LAN (10/100/1000)
1 x COM Port
1 x VGA
