rohs compliant Digital Engine DEX7150 Fanless PC
Ruggedized Fanless PC

Features | Specifications | Picture Gallery | Power Consumption


Heavy Duty Fanless PC

DEX7150 Fanless PC Computer
High quality graphics through multiple displays for applications

  • Space saving compact design
  • DisplayPort and DVI for Dual video outputs
  • Full size Mini card slots for expansions
  • USB 3.0 ports for high speed data transfer

Digital Engine DEX7150 is a Fanless PC computer designed for tough environments. It is designed for vigorous or highly sensitive environments where digital information displays, medical appliances, POS or kiosks are running. Thanks to its Fanless-PC design the system is very quiet, reliable and flexible as to their location.

The DEX7150 Fanless PC supports the 3rd Generation Intel® Core™ processor family (i3, i5, i7) for brilliant imagery and a seamless computing experience. It has 3 independent display outputs with 3 independent audio outputs for multi display purposes.

Key Features

  • Digital Engine® DEX7150 Fanless-PC is special design for digital signage application
  • Intel® Third generation mobile Core™ i3/i5/i7 CPU with 35W TDP for lowest power consuming.
  • Dual DDRIII SO-DIMM 1333/1600MHz memory up to 16GB
  • Support USB 3.0 up to 5 Gbps data transferring rate.
  • Realtek HD AUDIO ALC269Q provides crystal clear audio output.
  • Integrated mini card slot supports m-SATA and various expansion options.


Power Consumption in Watts
 15   25   35
idleIdle normalNormal fullPeak / Full

Pictures Gallery



DEX7150 Fanless PC Computer Specification
Processor Socket : CPU Socket G2 (988 pin)
Type : 3rd/2nd Generation Intel® Core i3/i5/i7 IVY Bridge and Sandy Bridge Processors (<35W)
Memory 2 x SODIMM DDR3 1066/1333/1600MHz
Maximum 16GB(Based on OS support)
Chipset Intel QM77 chipset
Video Graphic chipset various on Selected Processor
Core™ i3-3120M Processor (3M Cache, 2.50 GHz)
( HD Graphics 4000)
Core™ i5-3320M Processor (3M Cache, 3.30 GHz)
( HD Graphics 4000)
Core™ i5-3360M Processor (3M Cache, 3.50 GHz)
( HD Graphics 4000)
Core™ i7-3520M Processor (4M Cache, 3.60 GHz)
( HD Graphics 4000)
Core™ i7-3630QM Processor (6M Cache, up to 3.40 GHz)(4 Cores)
( HD Graphics 4000)
Audio Realtek ALC269Q Software high definition audio CODEC

Intel 82583V, Intel 82579LM (Gigabit LAN)
PXE Boot and WOL feature

USB 2.0/3.0 2 x USB 3.0
4 x USB 2.0
SATA SATA 6Gb/s and 3Gb/s specification
2.5" hard disk drive & optical disk drive
AHCI function
SATA SSD drive
Power Management ACPI 4.0a compliance and OS direct power management
Power Loss Resume feature
Watch Dog Timer not available
Switch and Jumper Front Panel:
2 x USB 2.0 ports
Power on/off button
Power and HDD LED

Back Panel:
1 x RS232 COM port
2 x RJ45 Gigabit fast Ethernet
1 x Line-out jack
1 x Mic jack
2 x USB 2.0 / 1.1 ports
2 x USB 3.0 / 1.1 ports
1 x DVI-I port (Digital and Analog)
2 x Display Port
1 x 19V DC power jack
Expansion Slot Mini PCI Express slot (Full size x1) mSATA Function
Mini PCI Express slot (Half size x1)
Optional Features -Optional Wifi
-Optional Bluetooth
Mounting bracket L-Shape Mounting included

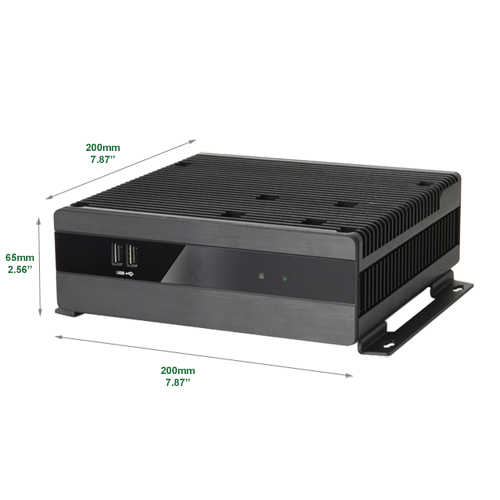

Dimension & Weight Metric : 200(W) x 65(H) x 200(D)mm
inch : 7.87(W) x 2.56(H) x 7.87(D)inch
N.W. : 2.95 kgs / 6.50 lbs
G.W. : 8.40 kgs / 18.52 lbs
Operating Temperature -5 to 40°C
AC/DC Adaptor External 110~240V AC-DC adapter 2-pin 19V DC @ 4.74A 90W
OS Windows XP
Windows Vista
Windows 7
Windows 8.1 (x86, x64)
Resolution HDTV 1080p
16:9 Resolution
Maximum Resolution:
VGA: 2048 x 1536 32-bit at 60Hz
DVI: 1920 x 1080 32-bit at 60Hz
3 x Independence Display
