rohs compliant All In One Touch Panel ET750
Think Big, go Thin

Features | Specifications | Picture Gallery | Power Consumption | Buy Now



The ET750 All-In-One Touch Panel PC (Computer) is highly robust with built-in cable management so that no ports are visible to the customer, making the device totally secure and tamper proof. It's also dust resistant and waterproof, and has a keen sense of style and aesthetic detail, with a slick Piano Black construction that will enhance any shopper's experience. The ET750 All-In-One Touch Panel PC is the kind of device that customers will want to play with, and one that retailers can have the confidence in letting them touch.


19" Multi-touch PC

All In One Touch Panel
ET750

Intel 3rd Gen CPU
Easy Installation
Robust PCT panel: dust and water proof

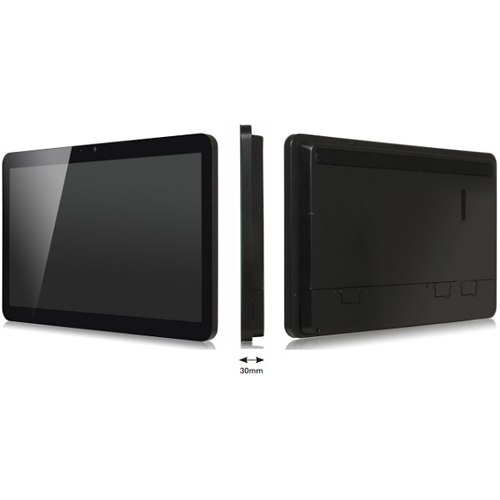

Aesthetics: Ultra slim form factor(30mm)
No need for enclosure or kiosk
Low Operating cost

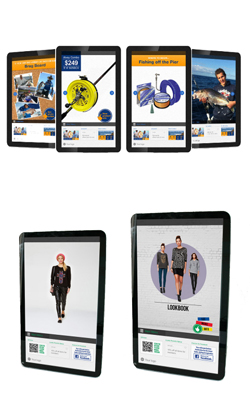

The ET750 All-In-One Touch Panel PC is an ultra-thin and exceptionally powerful 19" multi-touch PC (Computer). Designed for commercial retail use, it also has a keen sense of style and aesthetic detail with a slick Piano Black construction that will enhance any shopper's user experience. It's the kind of device that will markedly improve the engagement between the customer and your brand as a result.

A truly multipurpose solution:
+ Easy installation: no need for an enclosure or kiosk, the touch panel PC can simply be mounted on the wall
+ Low operating and installation cost
+ Robust PCT panel: dust and water proof (IP65)
+ Aesthetics: ultra slim form factor (30mm)
+ Power: running on the powerful Intel® QM77 chipset
+ True flat surface: easy to clean


Key Features

  • An ultra thin, ultra powerful, multi-purpose 19" multi-touch panel style PC.
  • Intel 2nd and 3rd generation mobile CPU, TDP <35 watt.
  • Dual DDRIII SO-DIMM 1333/1600MHz memory up to 16GB
  • Support USB 3.0 up to 5 Gbps data transferring rate.
  • Realtek HD AUDIO ALC886 provides crystal clear audio output.
  • Integrated mini card slot supports m-SATA and various expansion options.




spacer
Touch Panel PC ET750
To Customize a Complete System.  Black
 RoHS¹ Compliant
¹If you are purchasing for or exporting this system to European Countries, your system must be RoHS compliant. Click here for more RoHS information.
spacer

Pictures Gallery





All In One Touch Panel PC ET750 Specifications
Processor Intel 2nd and 3rd generation mobile CPU, TDP <35 watt.
Bios AMI: American Megatrends, Inc
UEFI supported.
Chipset Intel QM77 Chipset
System Memory 2 x DDR3 SO-DIMM up to 16GB, Dual Channel
Audio Realtek ALC886 HD Audio
Storage Support 1 x 2.5" SATA Hard disk, CF Disk or SSD drive
LAN PCI-E Gigabit Ethernet (W82576LM)
PXE Boot
Wake on LAN
Back I/O 2 x USB 3.0
1 x HDMI
2 x COM Port
2 x USB 2.0
2 x RJ45 LAN (10/100/1000)
1 x Line Out
1 x Mic in
Watchdog Timer 1 sec~255 sec
Optional Features Optional Wifi
Expansion: Mini Card Slot Full size x1(mSATA), Half size x1
Dimension & Weight 454 x 290 x 30mm
17.87 x 11.42 x 1.18inch
4.7 kg / 10.36 lbs (N.W.)
Power Management Watch Dog Timer Available
Operating & Storage Temperature Operating Temperature: 0 to 40°C
Operating Shock: 8G peak acceleration
Operating Vibration: 0.6G
Power Supply External 110~240V AC-DC Adapter 2-pin 19V DC@6.15A 120W
Power Loss Resume feature available
Mounting - Including Mounting Bracket
OS Windows 8 (x86, x64)
Windows 7 (x86, x64)
Windows XP
Certificate CE, FCC, RoHS
Touch Panel PCT Multi Touch Surface
(10 point touch)
Pencil Hardness = 7H per ASTM D3363
Pen Hitting: more than 20,000,000 times
(loading 180g)
LCD 19" with 1366x768
Brightness: 250 nits
Speakers Built-in 2W Stereo Speaker
Microphone Built-in internal Mono MIC
